Design and Implementation of Single Phase Nine-Level Inverter Using PIC18F4550

Prasetiyo, Natanael Novalutfi and Pratomo, Leonardus Heru (2018) Design and Implementation of Single Phase Nine-Level Inverter Using PIC18F4550. Int. Conf. on Information Tech., Computer, and Electrical Engineering (ICITACEE). pp. 84-88. ISSN 18311559

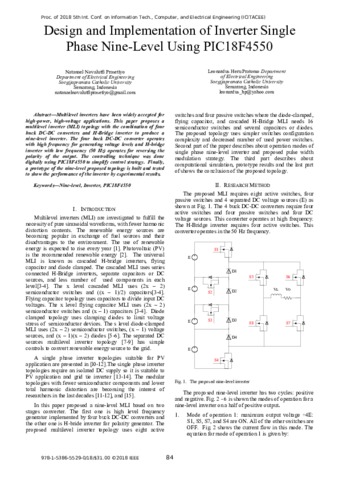

Text ICITACEE natan.pdf Download (986kB)

Abstract

Multilevel inverters have been widely accepted for high-power, high-voltage applications. This paper proposes a multilevel inverter (MLI) topology with the combination of four buck DC-DC converters and H-Bridge inverter to produce a nine-level inverter. The four buck DC-DC converter operates with high frequency for generating voltage levels and H-bridge inverter with low frequency (50 Hz) operates for reversing the polarity of the output. The controlling technique was done digitally using PIC18F4550 to simplify control strategy. Finally, a prototype of the nine-level proposed topology is built and tested to show the performance of the inverter by experimental results

Item Type:	Article
Subjects:	500 Science > 530 Physics
Divisions:	Faculty of Engineering > Department of Electrical Engineering
Depositing User:	Mr Leonardus Heru
Date Deposited:	07 Dec 2020 07:05
Last Modified:	07 Dec 2020 07:05
URI:	http://repository.unika.ac.id/id/eprint/22966
