Cahyosaputro, Wira Adhitama and Pratomo, Leonardus Heru (2018) A Single Phase 11-Level Inverter for Photovoltaic Application. Int. Conf. on Information Tech., Computer, and Electrical Engineering. pp. 79-83. ISSN 18311568
|
Text

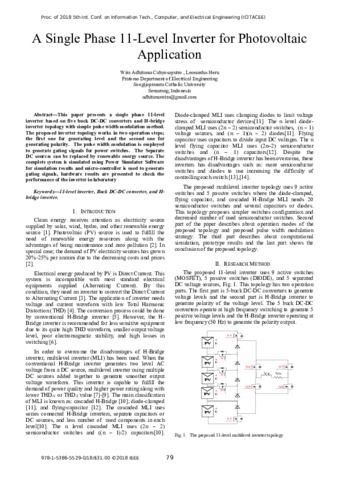

Icitacee wira.pdf Download (1MB) | Preview |
Abstract
This paper presents a single phase 11-level inverter based on five buck DC-DC converters and H-bridge inverter topology with simple pulse width modulation method. The proposed inverter topology works in two operation steps; the first one for generating level and the second one for generating polarity. The pulse width modulation is employed to generate gating signals for power switches. The Separate DC sources can be replaced by renewable energy source. The complete system is simulated using Power Simulator Software for simulation results and micro-controller is used to generate gating signals, hardware results are presented to check the performance of the inverter in laboratory
| Item Type: | Article |
|---|---|
| Subjects: | 500 Science > 530 Physics |
| Divisions: | Faculty of Engineering > Department of Electrical Engineering |
| Depositing User: | Mr Leonardus Heru |
| Date Deposited: | 07 Dec 2020 04:12 |
| Last Modified: | 07 Dec 2020 04:12 |
| URI: | http://repository.unika.ac.id/id/eprint/22954 |
