Optimalisasi Pengereman Regeneratif dengan Perubahan Sudut Eksitasi Pada Pulsa Tunggal

KUSUMANINGRUM, NAZILA and Riyadi, Slamet and Pratomo, Leonardus Heru and Setiawan, Florentinus Budi (2021) Optimalisasi Pengereman Regeneratif dengan Perubahan Sudut Eksitasi Pada Pulsa Tunggal. Jurnal Teknik Elektro, 13 (1). pp. 1-9. ISSN 1411-0057

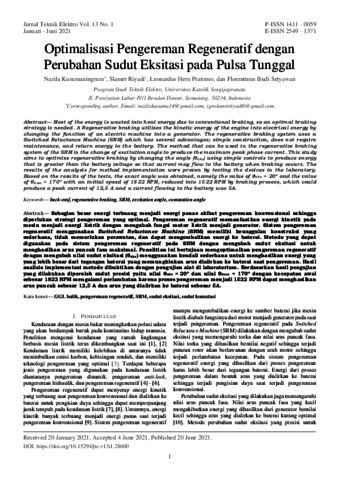

Jurnal Teknik Elektro.pdf

Download (1MB) | Preview
Official URL: https://journal.unnes.ac.id/


Most of the energy is wasted into heat energy due to conventional braking, so an optimal braking strategy is needed. A Regenerative braking utilizes the kinetic energy of the engine into electrical energy by changing the function of an electric machine into a generator. The regenerative braking system uses a Switched Reluctance Machine (SRM) which has several advantages; simple construction, does not require maintenance, and return energy to the battery. The method that can be used in the regenerative braking system of the SRM is the change of excitation angle to produce the maximum peak phase current. This study aims to optimize regenerative braking by changing the angle (0eks) using simple controls to produce energy that is greater than the battery voltage so that current may flow to the battery when braking occurs. The results of the analysis for method implementation were proven by testing the devices in the laboratory. Based on the results of the tests, the exact angle was obtained, namely the value of 0eks = 20° and the value of 0kom = 170° with an initial speed of 1822 RPM, reduced into 1522 RPM by braking process, which could produce a peak current of 12,5 A and a current fl.owing to the battery was SA.

Item Type: Article
Subjects: 600 Technology (Applied sciences) > 620 Engineering > 621 Electrical engineering
Depositing User: Mr F. Budi Setiawan
Date Deposited: 03 Jan 2023 08:05
Last Modified: 03 Jan 2023 08:05
URI: http://repository.unika.ac.id/id/eprint/30524
